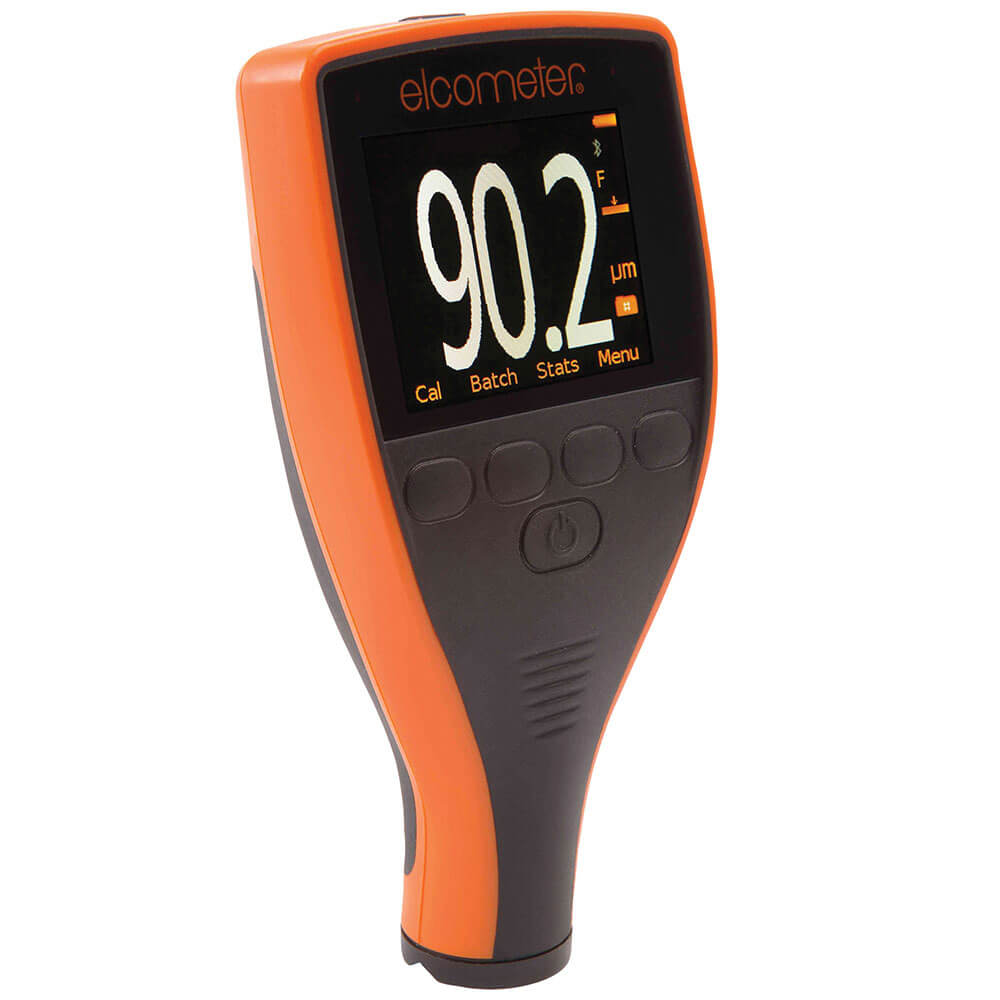

Elcometer 456 Integral Coating Thickness Gauge
The Elcometer 456 Coating Thickness Gauge sets new standards; providing reliable and accurate coating thickness measurements; helping you to become more efficient.
The Elcometer 456 dry film thickness gauge is available in three different models. Each coating thickness gauge provides the user with increasing functionality - from the entry level Elcometer 456 Model B, to the top of the range Elcometer 456 Model T.
Integral coating thickness gauges are ideal for single handed operation as the wide footprint of the Bigfoot™ internal probe provides greater stability during coating thickness measurement - allowing for consistent, repeatable and accurate dry film thickness results.
Compatible with ElcoMaster® software and ElcoMaster® Mobile App, individual coating thickness measurements can be transferred via USB or Bluetooth® to PC or a mobile device for analysis and instant report generation.
|
Integral Model Options |
|||||||||||
|
Scale 1 |
Range: 0-1500μm (0-60mils) |
Accuracy*: ±1-3% or ±2.5μm (±0.1mil) |
|||||||||
|
|
Resolution: 0.1μm: 0-100μm; 1μm: 100-1500μm (0.01mil: 0-5mils; 0.1mil: 5-60mils) |
||||||||||
|
|
Model B |
Model S |
Model T |
C |
|||||||
|
Elcometer 456 Ferrous Integral |
A456CFBI1 |
A456CFSI1 |
A456CFTI1 |
● |
|||||||
|
Elcometer 456 Non-Ferrous Integral |
A456CNBI1 |
See separate gauges with N2 PINIP™ Probe |
See separate gauges with N2 PINIP™ Probe |
● |
|||||||
|
Elcometer 456 Dual FNF Integral |
A456CFNFBI1 |
A456CFNFSI1 |
A456CFNFTI1 |
● |
|||||||
|
|
|
|
|
|
|||||||
|
Scale 2 |
Range: 0-5mm (0-200mils) |
Accuracy*: ±1-3% or ±20μm (±1.0mil) |
|||||||||
|
|
Resolution: 1μm: 0-1mm; 10μm: 1-5mm (0.1mil: 0-50mils; 1mil: 50-200mils) |
||||||||||
|
For higher resolution & accuracy on thin coatings Scale 2 gauges can be switched to the Scale 1 mode measurement performance |
|||||||||||
|
|
Model B |
Model S |
Model T |
C |
|||||||
|
Elcometer 456 Ferrous Integral |
A456CFBI2 |
See separate gauges with F2 PINIP™ Probe |
See separate gauges with F2 PINIP™ Probe |
● |
|||||||
|
|
|
|
|
|
|||||||
|
Scale 3 |
Range: 0-13mm (0-500mils) |
Accuracy*: ±1-3% or ±50μm (±2.0mils) |
|||||||||
|
|
Resolution: 1μm: 0-2mm; 10μm: 2-13mm (0.1mil: 0-100mils; 1mil: 100-500mils) |
||||||||||
|
|
Model B |
Model S |
Model T |
C |
|||||||
|
Elcometer 456 Ferrous Integral |
A456CFBI3 |
See separate gauges with F3 PINIP™ Probe |
See separate gauges with F3 PINIP™ Probe |
● |
|||||||
|
|
|
|
|
|
|||||||
|
Technical Specification |
|||||||||||
|
Display information |
2.4" (6cm) QVGA colour TFT display, 320 x 240 pixels |
||||||||||
|
Battery type |
2 x AA dry cell batteries, rechargeable batteries can also be used |
||||||||||
|
Battery life |
~24 hours of continuous use at 1 reading per second5 |
||||||||||
|
Gauge dimensions (h x w x d) |
141 x 73 x 37mm (5.55 x 2.87 x 1.46") |
||||||||||
|
Gauge weight |
161g (5.68oz) including supplied batteries |
||||||||||
|
Operating temperature |
-10 to 50°C (14 to 122°F) |
||||||||||
|
Packing List |
Elcometer 456 gauge, calibration foils (integrals only), wrist harness, transit case (T), protective case (B, S, T), 1 x screen protectors (S, T), 2 x AA batteries, operating instructions, USB cable (S, T), ElcoMaster® software (S, T) |
||||||||||
Code: Elcometer 456
