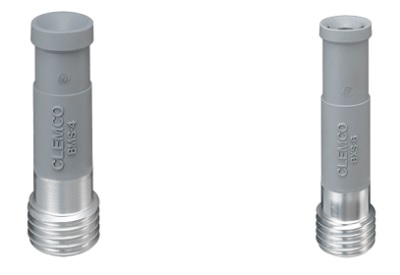

Boron Carbide Nozzle (BC) with Silicone Jacket -Coarse Thread 50mm
NOZZLES (BC) WITH SILICON COAT, COARSE THREAD 50 MM
item # description size
24279D BMS-4 BC-NOZZLE 6 x 135 mm
24280D BMS-5 BC-NOZZLE 8 x 135 mm
24281D BXS-6 BC-NOZZLE 10 x 160 mm
Nozzles with X have an input cone of 32 mm (all other nozzles 25 mm !).
AIR VOLUME IN M³/MIN
nozzle orifice 3,5 bar 4,2 bar 4,9 bar 5,6 bar 6,3 bar 7,0 bar 8,6 bar 10,3 bar
5 mm 3/16“ 0,73 0,84 0,92 1,06 1,15 1,26 1,54 1,82
6,5 mm ¼” 1,31 1,51 1,71 1,9 2,08 2,27 2,75 3,22
8 mm 5/16“ 2,16 2,5 2,83 3,16 3,53 3,84 4,71 5,57
9,5 mm 3/8” 3,02 3,53 4 4,5 4,85 5,5 6,64 7,79
11 mm 7/16” 4,12 4,76 5,44 6,09 6,73 7,11 8,8 10,48
12,5 mm ½” 5,46 6,28 7,06 7,85 8,65 9,46 11,46 13,45
When selecting an air volume, please add 50% to the table values to allow loss for normal nozzle wear and friction.
